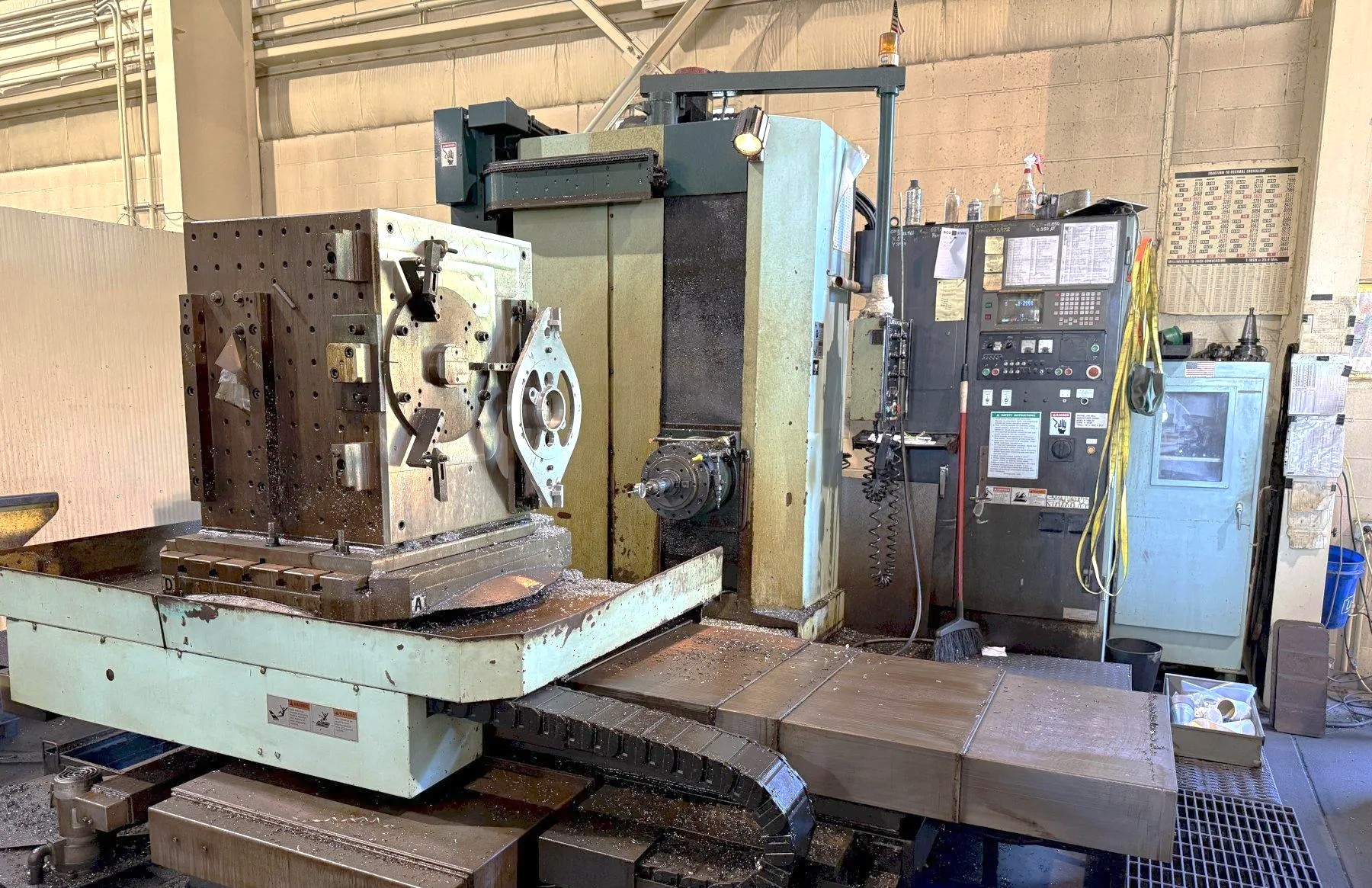

1995 Kuraki KBM-11A CNC Table Type Horizontal Boring Mill with Full 4th Axis Table, 30 Station ATC, Fanuc 16M, 41.34"x37.4" Table

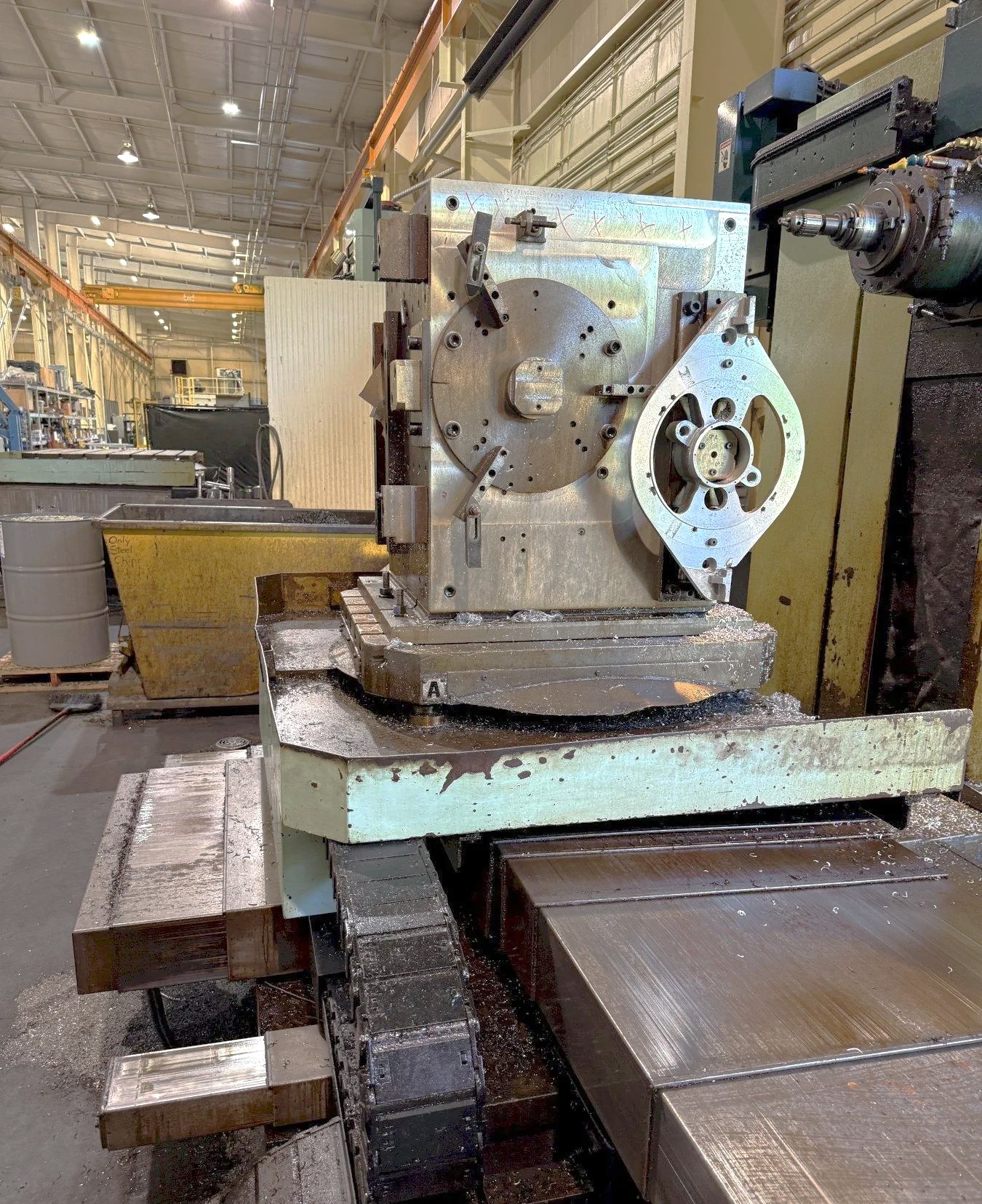

Full 4th Axis B-Axis Rotary Table - .001 Degree

T-Slotted 37.4" x 41.34" Rotary Table

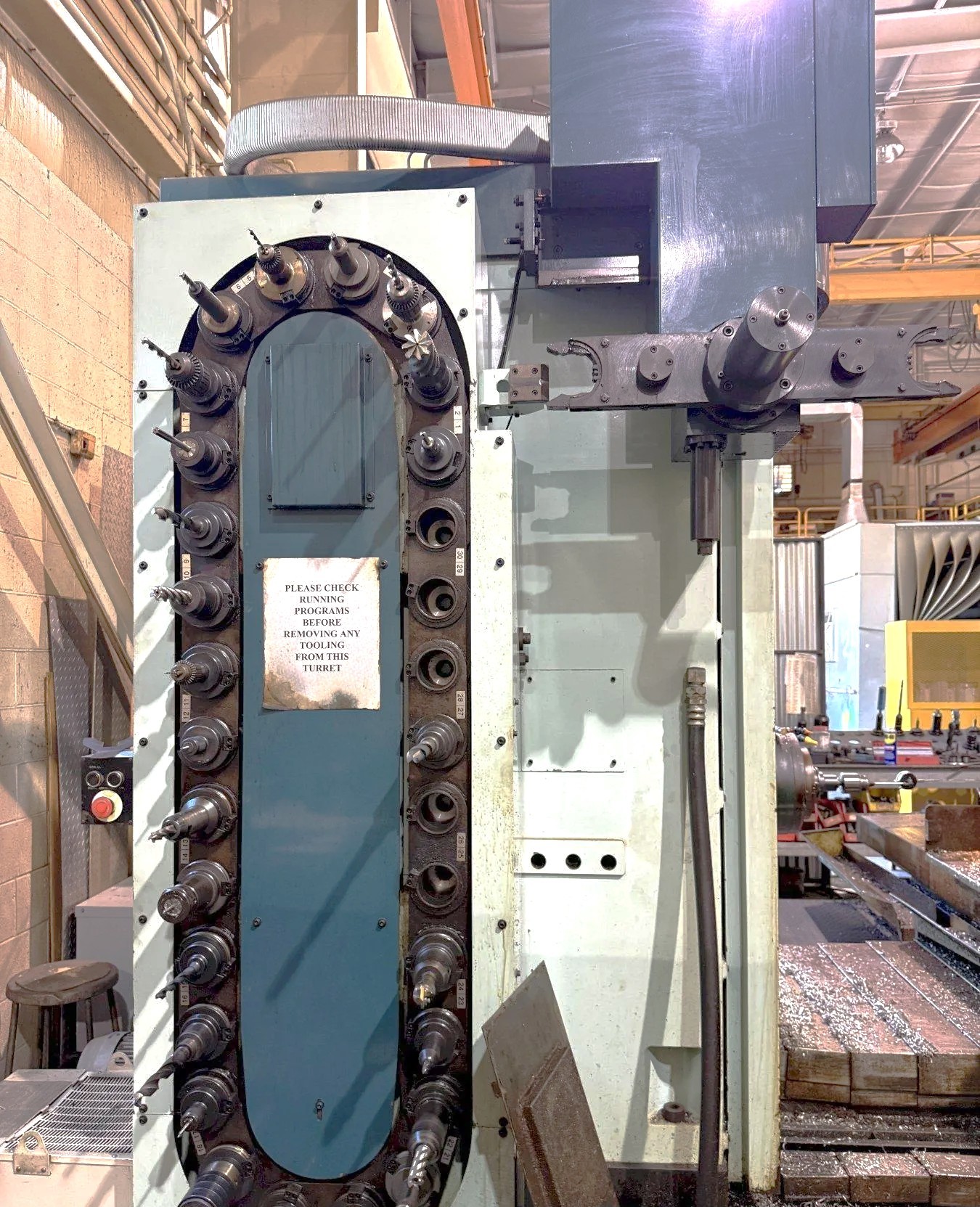

30 Station Tool Changer

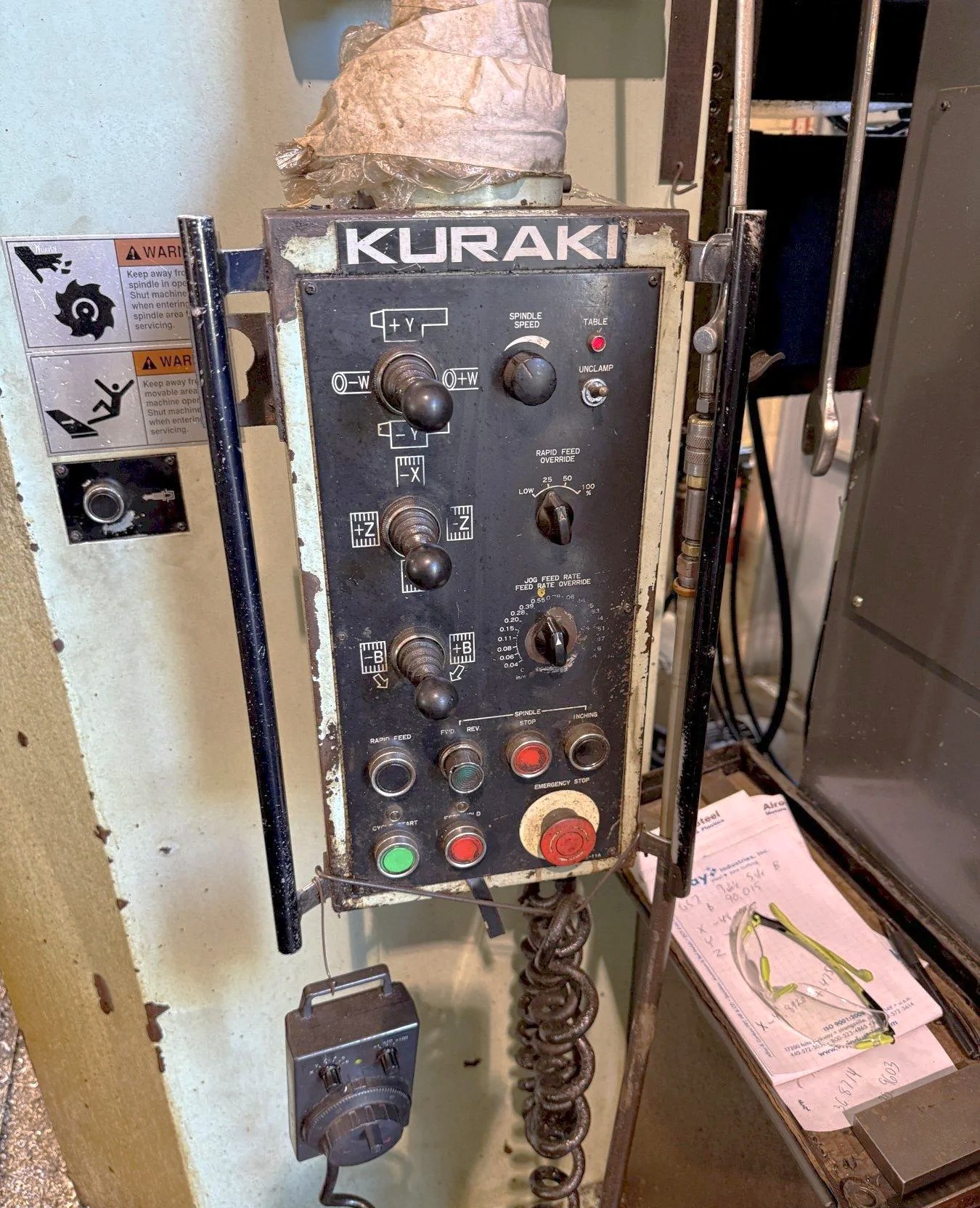

Hand Held Remote Jog Handle

Spindle Chiller Unit

Variable 3 Speed

Way Covers

Coolant System with Tank & Pump.

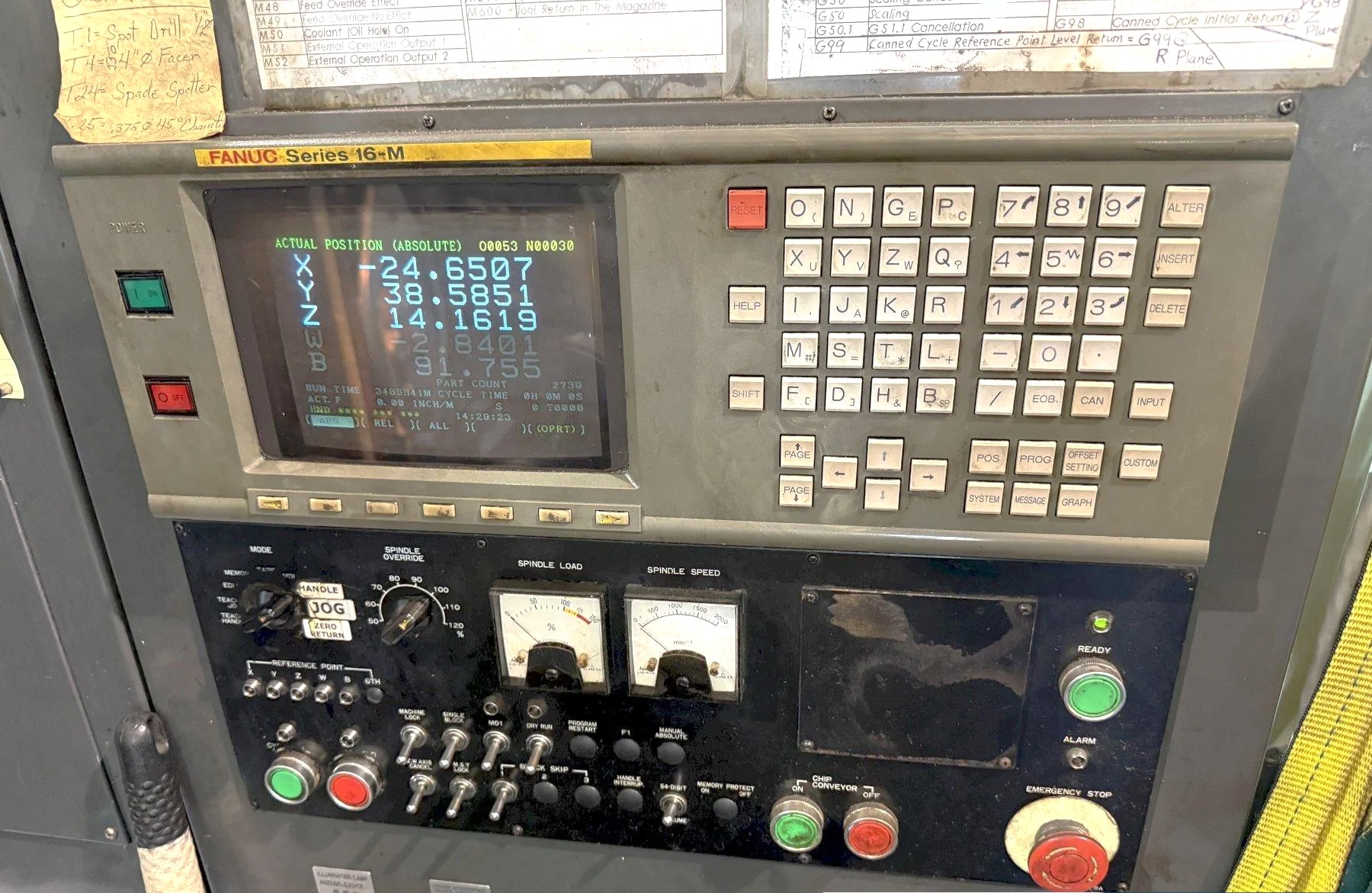

The 1995 Kuraki KBM-11A is a reliable and robust CNC table type horizontal boring mill, renowned for its precision and efficiency. This machine features a Fanuc 16M Series Control for seamless operation and includes a full 4th axis table, providing versatility in machining complex parts. The sturdy 37.4" x 41.34" table can support a maximum weight of 6,600 lbs, making it suitable for handling heavy workpieces. With axis travels of 59.06" (X), 47.24" (Y), and 27.56" (Z), along with a 13.78" W-Axis travel, the KBM-11A is designed for flexibility and precision in boring and milling operations. It boasts a powerful 30 HP spindle motor capable of speeds up to 3,000 RPM, supported by a CAT #50 spindle taper with a diameter of 4.33". The rapid traverse rates of 394 IPM and cutting feedrates of 157 IPM ensure high efficiency and productivity. Equipped with a 30-station automatic tool changer, the machine accommodates a wide range of tooling requirements, supporting a maximum tool diameter of 4.92", or 9.05" with the next position empty. Despite showing signs of use, this Kuraki boring mill remains a dependable choice for manufacturers seeking a high-performance, durable solution for large-scale and intricate projects.
