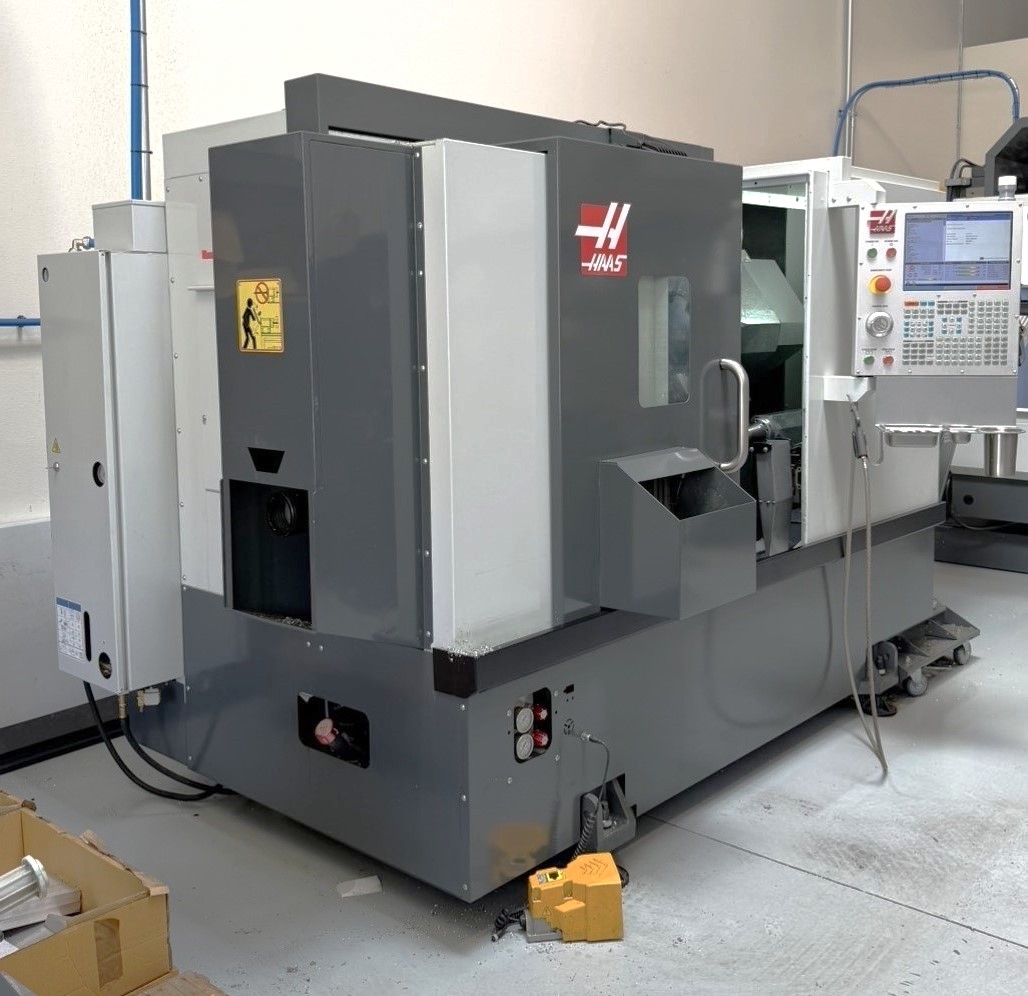

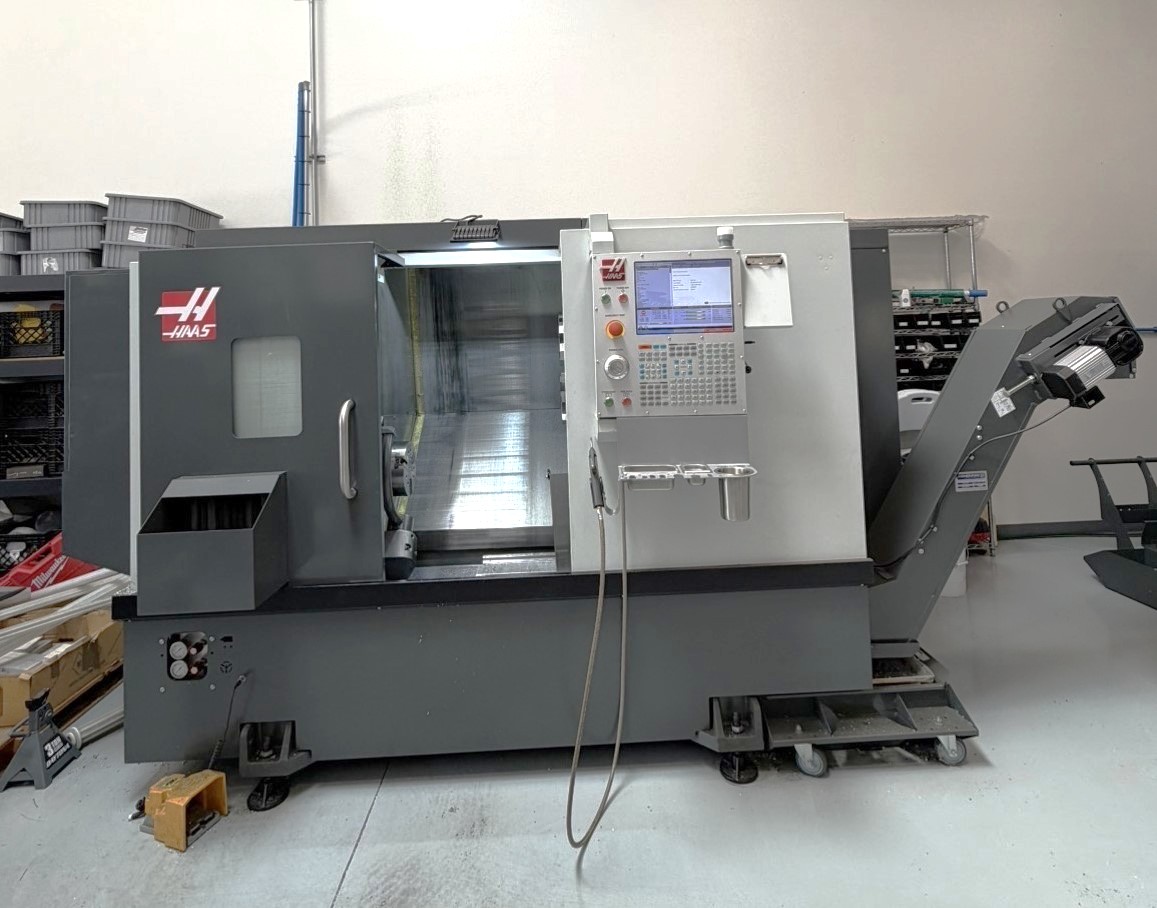

2022 Haas ST-20 with Tailstock, Chip Conveyor, 8" Hyd. Chuck, Tool Presetter, Parts Catcher, Very Nice Condition

Tool Presetter

Belt Type Chip Conveyor

Programmable Hydraulic Tailstock

8" 3 Jaw Hydraulic Chuck

Parts Catcher

User Definable Macros

Visual Part Programming System

Rigid Tapping

Coolant Tank w/Pump

USB Port Interface

3.5" Floppy Disk Interface

RS232 Port Interface

12 Station Bolt On Style Turret

220V 3-phase Electrics

All Available Tool Blocks

**Price was new as equipped at $103,000, with todays discounted pricing still prices out at $89,000**

The 2022 Haas ST-20 CNC lathe is a well-maintained, used machine equipped with numerous features suitable for a variety of machining tasks. It incorporates the Haas NextGen Control system, ensuring efficient and user-friendly operation. This model comes with an 8-inch hydraulic 3-jaw chuck, providing secure workholding capabilities, and includes a tool presetter for enhanced precision and efficiency. The ST-20 offers a maximum swing of 20 inches and a swing over cross slide of 10 inches, with a notable distance between centers of 24 inches. It has X-axis and Z-axis travel of 8.45 inches and 20 inches respectively, and it supports spindle speeds ranging from 0 to 4,000 RPM. Powered by a 20 HP motor, it delivers a spindle torque of 120 ft/lbs. The lathe is equipped with a 12-station turret for diverse tooling options. Additional features like a chip conveyor, tailstock with MT #4 taper, and a parts catcher are included, enhancing its functionality for varied operations. With machine dimensions of 126.5"x62"x72" and a weight of 9,000 lbs, this unit is built for stability and durability. This machine represents a solid investment for those seeking reliable performance and versatility in a CNC lathe.
