2023 DN Solutions Lynx 2100LYB with Y Axis, C Axis Spindle with Live Milling, Parts Catcher, Tailstock, Chip Conveyor, 2.6" Bar Capacity

C-Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

Chip Conveyor

Auto Tool Presetter

Parts Catcher

Tailstock

Rigid Tapping

8" 3 Jaw Hydraulic Chuck

Coolant System with Tank & Pump

USB Port Interface

RS 232 Port Interface

All Available Tooling

All Available Manuals

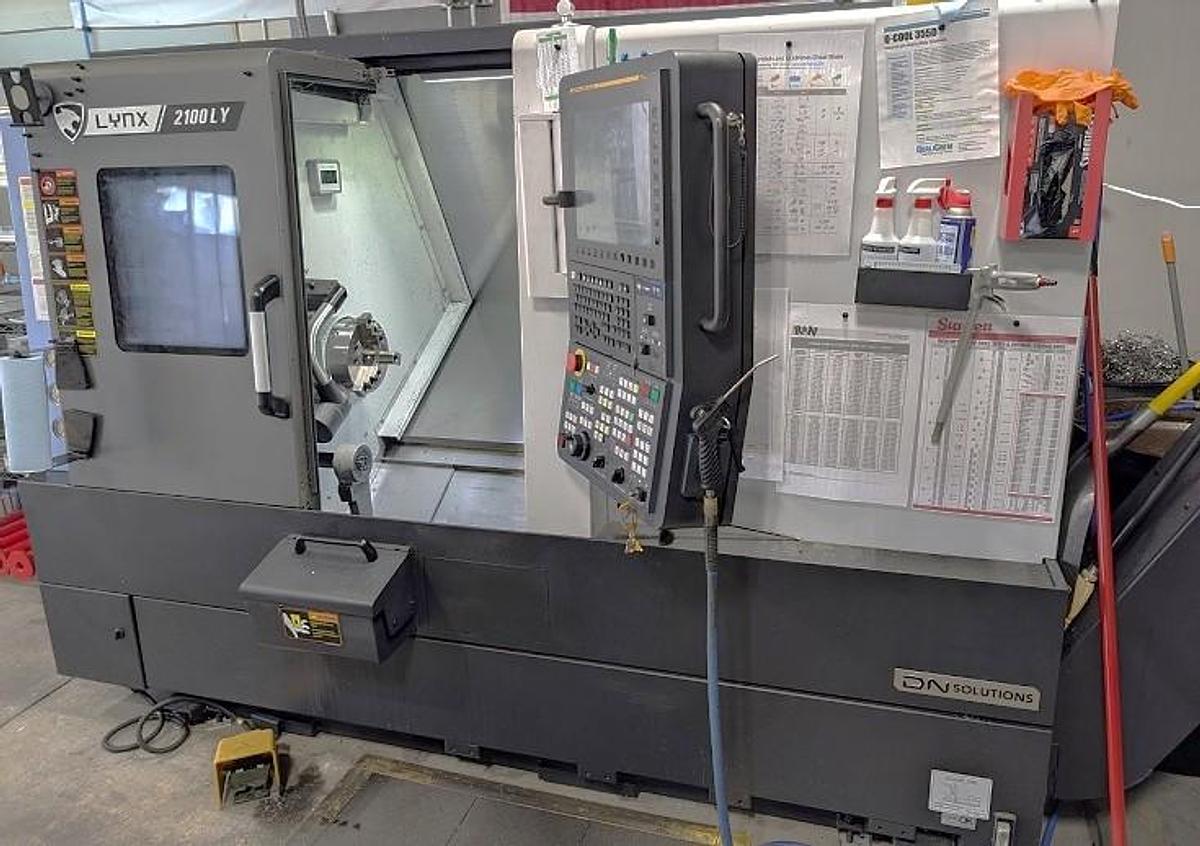

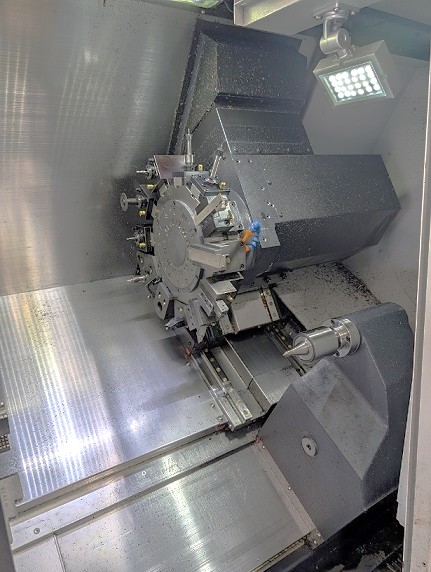

The 2023 DN Solutions Lynx 2100LYB is a versatile CNC lathe, particularly notable for its Y-axis and C-axis spindle, which includes live milling capabilities. This machine is equipped with an 8" 3-jaw chuck and offers a maximum bar capacity of 2.6", allowing for significant machining flexibility. Its turning capabilities are robust, with a maximum turning diameter of 11.8" and a maximum turning length of 20.1". Powered by a Fanuc i Series Control, the Lynx 2100LYB delivers reliable performance with a spindle speed of 4,500 RPM and a 20 HP spindle motor. The Y-axis has a travel distance of +/- 2.5", enhancing the machine's multi-tasking functionality. Additionally, the rotary tool speed reaches up to 6,000 RPM powered by a 5 HP rotary motor, and the 12-position turret supports diverse production demands. For operational ease, the lathe includes a parts catcher, tailstock, and chip conveyor. With overall dimensions of 135" x 75" x 85", and weighing 9,500 lbs, the machine fits a wide range of shop environments. This used model offers a balance of performance and features ideal for achieving precision in complex machining tasks.
